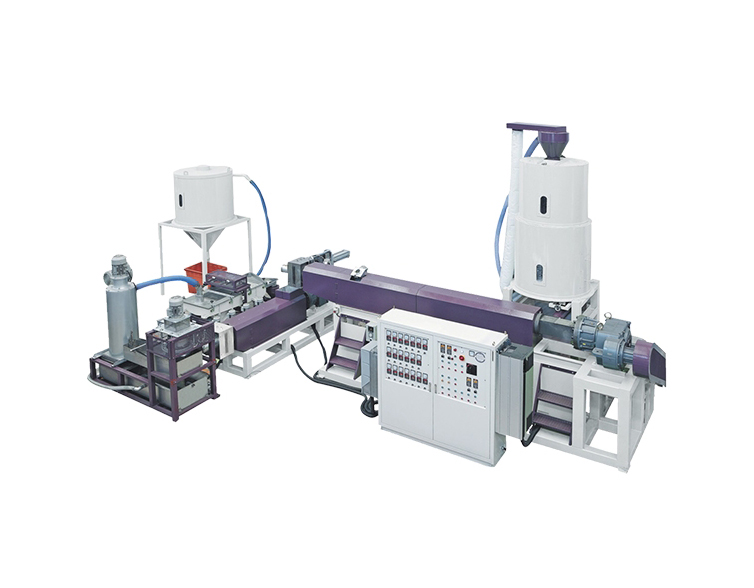

Plastic Film/Bottle Recycle Machine (Two Station Model)
Features
- Model: CR series
- Product: Plastic pellets
- Material: Plastic film / sheet…soft material Plastic bottle / cans….rigid material
- Screw L/D ratio: L/D ratio 32:1 / 40:1
- Temperature controller PID+SCR
- ABB or HITACHI inverter
A plastic film/bottle recycling pelletizing machine is used to transform waste plastic materials such as plastic bottles and films into reusable plastic pellets or granules. This CR Model two-station pelletizer is equipped with a powerful centrifuge that can ensure pelletizing with low power consumption and high production.

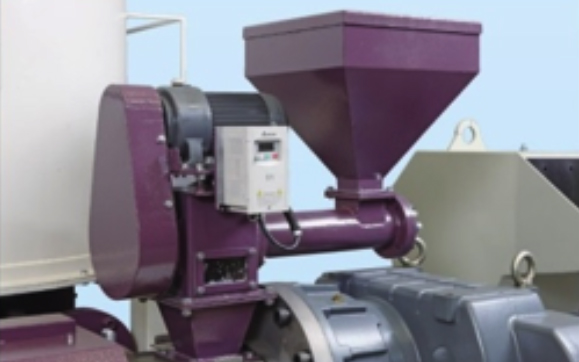

- Optional side feeding device can be controlled by ABB inverter for adjusting feeding speed and ensuring the stability of output.
- Closed type water cooling circular system can reduce the water consumption.
- Powerful centrifuge ensure pelletizing with low power consumption and high production.
Items/Models | CR-85 | CR-100 | CR-120 | CR-135 | CR-150 | |
---|---|---|---|---|---|---|
Suitable Material | Plastic film / sheet…soft material Plastic bottle / cans….rigid material |
|||||
Output (kg/hr) | Soft | 100-160 | 140-220 | 200-300 | 250-400 | 350-500 |
Rigid | 120-200 | 180-300 | 250-400 | 300-500 | 400-600 | |
Screw Diameter | 85mm | 100mm | 120mm | 135mm | 150mm | |
Screw L/D Ratio | 32 :1 | |||||
Main Motor (HP) | 75 | 125 | 150 | 175 | 200 |
Items/Models | CR-85 | CR-100 | CR-120 | CR-135 | CR-150 | |
---|---|---|---|---|---|---|
Suitable Material | Plastic film / sheet…soft material Plastic bottle / cans….rigid material |
|||||
Output (kg/hr) | Soft | 100-160 | 140-220 | 200-300 | 250-400 | 350-500 |
Rigid | 120-200 | 180-300 | 250-400 | 300-500 | 400-600 | |
Screw Diameter | 85mm | 100mm | 120mm | 135mm | 150mm | |
Screw L/D Ratio | 32 :1 | |||||
Main Motor (HP) | 75 | 125 | 150 | 175 | 200 |
