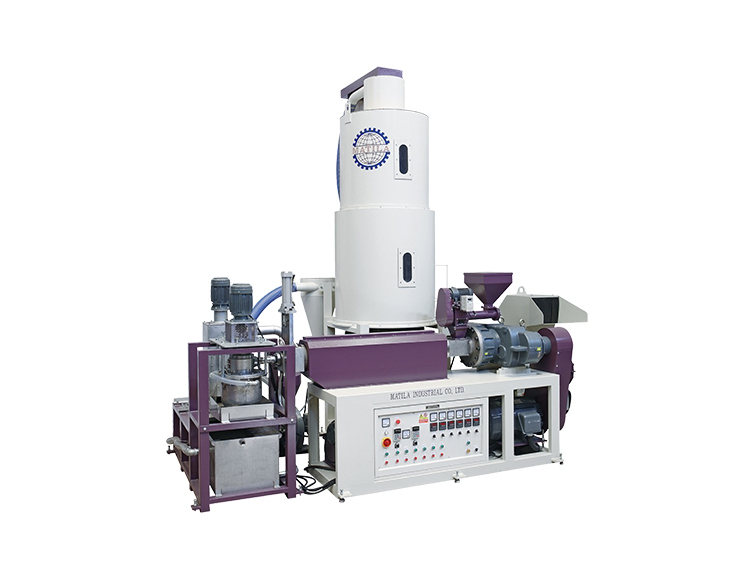

Mini Type Plastic Waste Recycle Machine
Features
- Model: CT-RZ series
- Product: Plastic pellets
- Material: HDPE / LDPE / PP waste film / sheet / bags
- Screw dimension: 85mm, L/D ratio 16:1
- Temperature controller PID+SCR.
- ABB or HITACHI inverter.
- Combine crushing and extruding system into one machine.
- Suitable for small and middle scale bags/film factory.
| Items/Models | CT-RZ-85 | CT-RZ-85WD | CT-RZ-85A | CT-RZ-85AWD |
|---|---|---|---|---|
| Suitable Material | HDPE / LDPE / PP Film / Sheets / bags | |||
| Output (kg/hr) | 30-50 | 30-50 | 40-60 | 40-70 |
| Feeding Method | Manual hand feeding | Manual hand feeding | Auto feeding | Auto feeding |
| Screw Diameter | 85mm | |||
| Screw L/D Ratio | 16 :1 | |||
| Screen changer | Hydraulic driven slide plate type | |||
| Main Motor (HP) | 20 | 20 | 25 | 25 |
| Cooling method | Air cooling | Water cooling | Air cooling | Water cooling |
| Items/Models | CT-RZ-85 | CT-RZ-85WD | CT-RZ-85A | CT-RZ-85AWD |
|---|---|---|---|---|
| Suitable Material | HDPE / LDPE / PP Film / Sheets / bags | |||
| Output (kg/hr) | 30-50 | 30-50 | 40-60 | 40-70 |
| Feeding Method | Manual hand feeding | Manual hand feeding | Auto feeding | Auto feeding |
| Screw Diameter | 85mm | |||
| Screw L/D Ratio | 16 :1 | |||
| Screen changer | Hydraulic driven slide plate type | |||
| Main Motor (HP) | 20 | 20 | 25 | 25 |
| Cooling method | Air cooling | Water cooling | Air cooling | Water cooling |
